해당 문서를 참고하여 강화학습 제어용 이륜 로봇을 제작하였다.
https://isaac-sim.github.io/IsaacLab/main/source/setup/walkthrough/training_jetbot_gt.html
Training the Jetbot: Ground Truth — Isaac Lab Documentation
Training the Jetbot: Ground Truth With the environment defined, we can now start modifying our observations and rewards in order to train a policy to act as a controller for the Jetbot. As a user, we would like to be able to specify the desired direction f
isaac-sim.github.io
또한 해당 예제를 통해 같은 종류의 이륜 로봇의 방향을 제어하는 예제 코드를 기반으로 시작하였다.

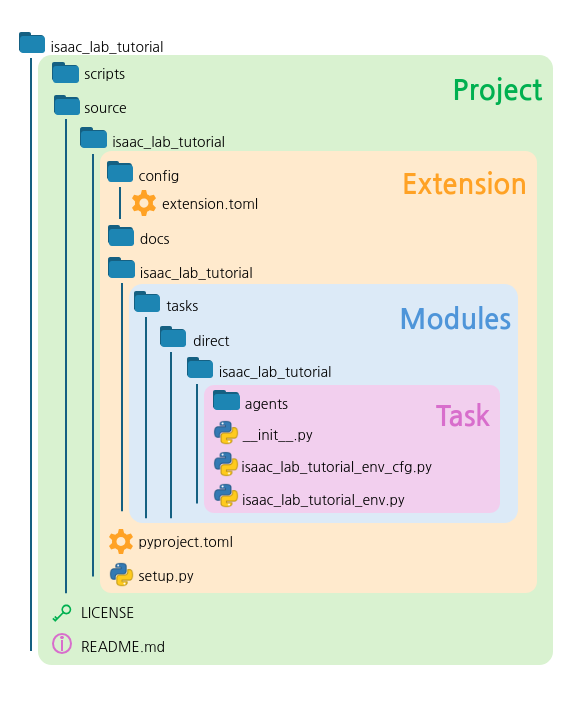

주로 수정한 파일은 Task의 env.py 파일이다.
1. RL 에이전트가 수행할 작업(Task) 변경
원래 코드
- _reset_idx 함수에서 self.commands라는 임의의 방향 벡터 생성
- 에이전트가 self.commands 벡터 방향으로 최대한 정렬, 해당 방향으로 빠르게 나아가는 것이 목표
- 목표 시각화를 위한 waypoint 마커가 존재
수정된 코드
- _reset_idx 함수에서 self.waypoint_locations 목표 좌표 생성
- self.commands 벡터 생성은 삭제
- 에이전트는 현재 위치에서 self.waypoint_locations까지 스스로 경로를 찾아 도달하는 것이 목표
- 조금 더 복잡하고 일반적인 내비게이션(Navigation) 문제

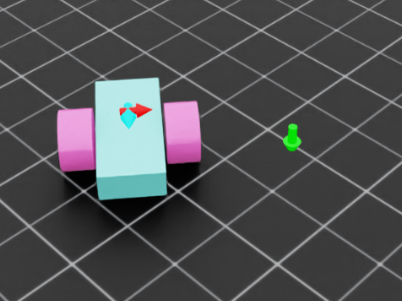

2. 시각화(Visualization) 마커 로직 변경
학습 환경 시각화를 도와주는 마커(_visualize_markers) 작동 방식 변경

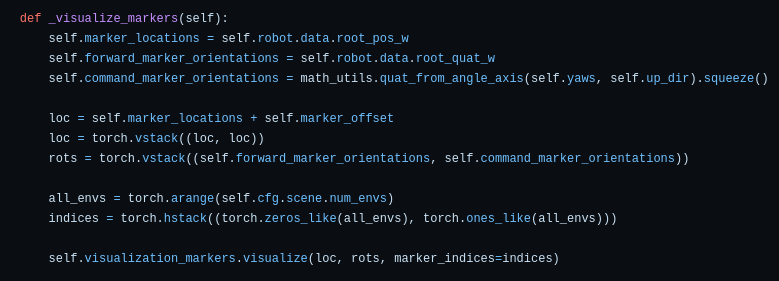

원래 코드
- forward 마커(파란색 화살표)는 로봇의 전진 방향 벡터 표시
- command 마커(빨간색 화살표)는 임의로 생성된 self.commands 벡터 방향 표시
수정된 코드
- waypoint 마커 추가해 목표 지점 (녹색 화살표) 시각화
- command 마커가 현재 로봇 위치에서 목표 지점(waypoint)을 가리키는 방향을 실시간으로 계산
- 현재 로봇이 목표를 향해 주행중인지 직관적으로 파악 가능

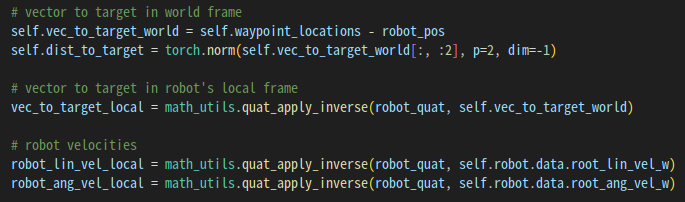

3. 관측 (_get_observations) 재구성
원래 코드
- 로봇의 foward.commands 와 self.commands 벡터 간의 관계 관측
- dot: 두 벡터의 내적 (방향 일치도).
- cross: 두 벡터의 외적 (방향 차이).
- forward_speed: 로봇의 전진 속도.
수정된 코드
- 목표 지점 도달에 필수적인 정보들로 관측 데이터 구성
- vec_to_target_local: 로봇의 현재 위치와 방향 기준 목표 지점까지의 상대 위치 벡터
- robot_lin_vel_local: 로봇의 로컬 좌표계 기준 선속도
- robot_ang_vel_local: 로봇의 로컬 좌표계 기준 각속도
4. 보상 (Reward) 시스템 설계 변경 (_get_rewards)

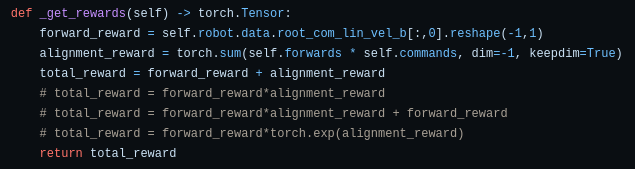

원래 코드
- 전진 속도 보상 (forward_reward)
- 명령 방향 정렬 보상 (alignment_reward)
수정된 코드
- 목표 지점 도달을 위한 복합적이고 정교한 보상 구조 도입
- progress_reward: 목표 지점과의 거리에 따른 보상 (포텐셜 기반)
- velocity_reward: 목표 지점을 향해 움직이는 속도에 대한 보상
- heading_reward: 로봇이 목표 지점을 바라보도록 유도하는 보상
- success_reward: 목표 근접 시 주어지는 큰 성공 보상
- action_penalty, time_penalty: 불필요한 움직임, 시간 단축을 위한 페널티
- 이론 지식이 부족해서 대부분의 시간이 Reward function 수정에 소요

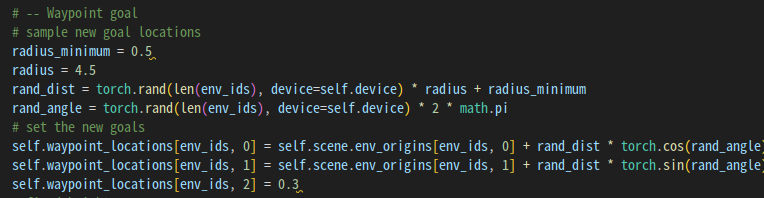

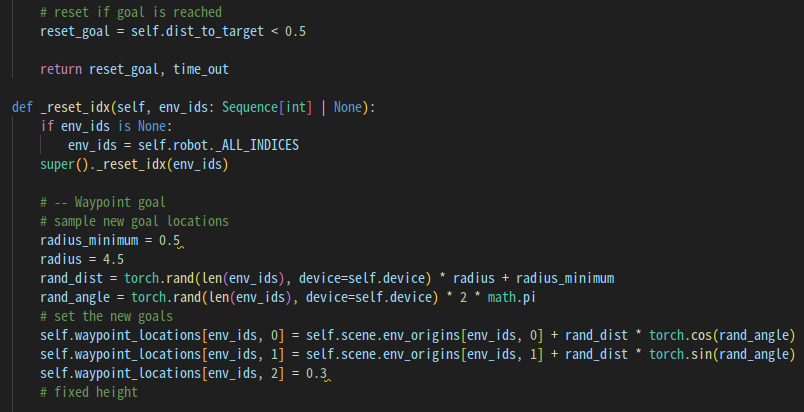

5. episode 관리 로직 변경 (_get_dones, _reset_idx)
원래 코드
- 종료 조건: 최대 스텝 도달 시
- 리셋: 무작위 '방향' 벡터(commands) 생성
수정된 코드
- 종료 조건: 목표 지점 도달 조건 추가
- 리셋: 무작위 '목표 지점'(waypoint_locations) 반경 내 생성
- 리셋 시, 거리 기반 보상(potentials) 값 초기화

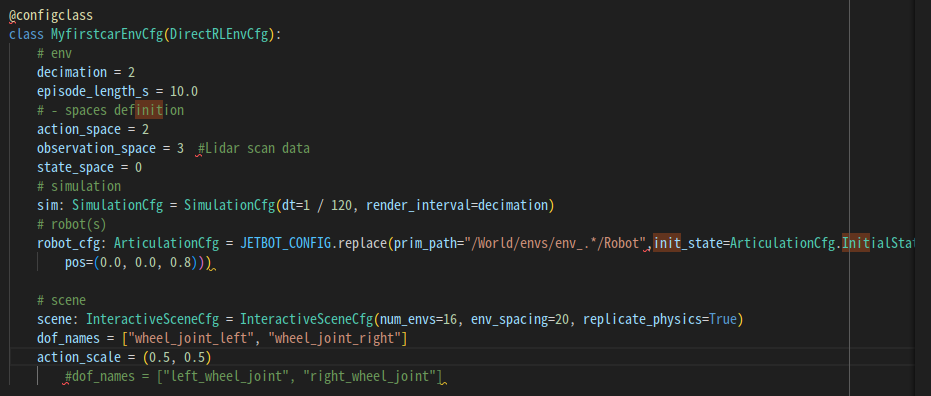

6. env_cfg 설정 변경
- 환경 이름 외부 프로젝트(Myfirstcar)에 맞춰 수정
- robot_cfg를 jetbot에서 직접 설계한 이륜 로봇으로 교체 (ground plane 간섭 방지용 pos 옵션 추가)
- episode 세션 시간 2배로 증가(waypoint 도달 전에 episode 종료 막음)
- action scale 값 0.5로 최적화 episode 세션 시간 2배로 증가

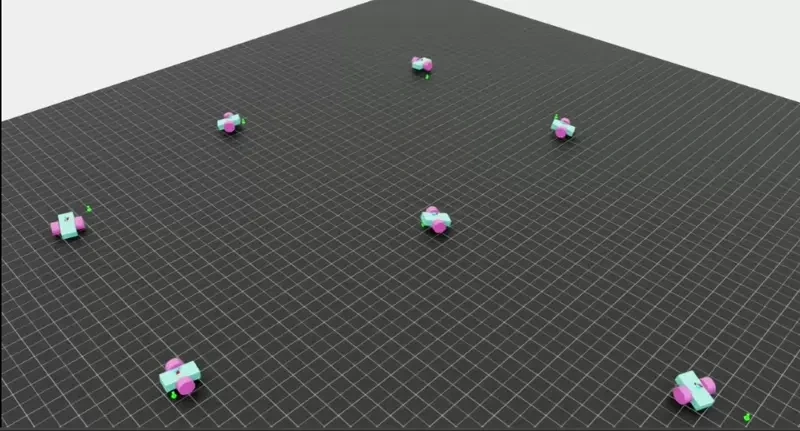

4800 epoch 학습 결과
수정된 env.py 코드
# Copyright (c) 2022-2025, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
from __future__ import annotations
import math
import torch
from collections.abc import Sequence
import isaaclab.sim as sim_utils
from isaaclab.assets import Articulation
from isaaclab.envs import DirectRLEnv
from isaaclab.sim.spawners.from_files import GroundPlaneCfg, spawn_ground_plane
from isaaclab.utils.math import sample_uniform
from isaaclab.assets import RigidObject, RigidObjectCfg
from isaaclab.sensors.ray_caster import RayCaster, RayCasterCfg, patterns
from .myfirstcar_env_cfg import MyfirstcarEnvCfg
from isaaclab.markers import VisualizationMarkers, VisualizationMarkersCfg
from isaaclab.utils.timer import Timer
from isaaclab.utils.assets import ISAAC_NUCLEUS_DIR
import isaaclab.utils.math as math_utils
def define_markers() -> VisualizationMarkers:
"""Define markers with various different shapes."""
marker_cfg = VisualizationMarkersCfg(
prim_path="/Visuals/myMarkers",
markers={
"forward": sim_utils.UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
scale=(0.25, 0.25, 0.5),
visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 1.0)),
),
"command": sim_utils.UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
scale=(0.25, 0.25, 0.5),
visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 0.0, 0.0)),
),
"waypoint": sim_utils.UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
scale=(0.3, 0.3, 0.6),
visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 0.0)),
),
"lidar": sim_utils.UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
scale=(0.3, 0.3, 0.6),
visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.5, 1.0, 0.0)),
)
},
)
return VisualizationMarkers(cfg=marker_cfg)
class MyfirstcarEnv(DirectRLEnv):
cfg: MyfirstcarEnvCfg
def __init__(self, cfg: MyfirstcarEnvCfg, render_mode: str | None = None, **kwargs):
super().__init__(cfg, render_mode, **kwargs)
self.dof_idx, _ = self.robot.find_joints(self.cfg.dof_names)
self.action_scale = torch.tensor(self.cfg.action_scale, device=self.device)
def _define_sensor(self) -> RayCaster:
"""Defines the ray-caster sensor to add to the scene."""
# Lidar sensor configuration
self.ray_caster_cfg = RayCasterCfg(
prim_path="/World/envs/env_.*/Robot/",
mesh_prim_paths=["/World/ground"],
update_period=0.02,
pattern_cfg=patterns.GridPatternCfg(resolution=0.1, size=(1.6, 1.0)),
offset=RayCasterCfg.OffsetCfg(pos=(0.2, 0.0, 0.05)),
ray_alignment="yaw",
debug_vis=True,
)
return RayCaster(cfg=self.ray_caster_cfg)
def _setup_scene(self):
self.robot = Articulation(self.cfg.robot_cfg)
# add ground plane
spawn_ground_plane(prim_path="/World/ground", cfg=GroundPlaneCfg())
# clone and replicate
self.scene.clone_environments(copy_from_source=False)
# add articulation to scene
self.scene.articulations["robot"] = self.robot
# add lights
light_cfg = sim_utils.DomeLightCfg(intensity=2000.0, color=(0.75, 0.75, 0.75))
light_cfg.func("/World/Light", light_cfg)
self.visualization_markers = define_markers()
# Initialize sensors and add them to the scene
self.ray_caster = self._define_sensor()
self.scene.sensors["lidar"] = self.lidar
# setting aside useful variables for later
self.up_dir = torch.tensor([0.0, 0.0, 1.0], device=self.device)
self.waypoint_locations = torch.zeros((self.cfg.scene.num_envs, 3), device=self.device)
# initialize buffers
self.dist_to_target = torch.zeros(self.num_envs, device=self.device)
self.potentials = torch.zeros(self.num_envs, device=self.device)
self.marker_offset = torch.zeros((self.cfg.scene.num_envs, 3), device=self.device)
self.marker_offset[:,-1] = 0.5
def _visualize_markers(self):
# get marker locations and orientations
robot_locations = self.robot.data.root_pos_w + self.marker_offset
forward_orientations = self.robot.data.root_quat_w
# Command marker points towards the waypoint
vec_to_target = self.waypoint_locations - robot_locations
vec_to_target[:, 2] = 0
# Normalize the target vector
vec_to_target_norm = torch.linalg.norm(vec_to_target, dim=1, keepdim=True)
vec_to_target_safe = vec_to_target / (vec_to_target_norm + 1e-6)
# The command marker (arrow_x.usd) points along the x-axis by default.
# This is our starting vector for the rotation calculation.
start_vec = torch.tensor([1.0, 0.0, 0.0], device=self.device).expand_as(vec_to_target_safe)
# Calculate angle and axis for rotation
dot_product = torch.sum(start_vec * vec_to_target_safe, dim=-1).clamp(-1.0, 1.0)
angle = torch.acos(dot_product)
axis = torch.cross(start_vec, vec_to_target_safe, dim=-1)
# Normalize the rotation axis
axis_norm = torch.linalg.norm(axis, dim=-1, keepdim=True)
# Handle cases where vectors are collinear (axis norm is near zero)
up_vec = torch.tensor([0.0, 0.0, 1.0], device=self.device).expand_as(axis)
axis = torch.where(axis_norm > 1e-6, axis / (axis_norm + 1e-8), up_vec)
# Create quaternion from angle and axis
command_orientations = math_utils.quat_from_angle_axis(angle, axis)
# -- waypoint marker is at the target location
waypoint_locations = self.waypoint_locations
# waypoint orientation is fixed (identity)
waypoint_orientations = torch.tensor([-0.7071, 0.0, -0.7071, 0.0], device=self.device).repeat(self.num_envs, 1)
# stack all marker information
locs = torch.vstack((robot_locations, robot_locations, waypoint_locations))
rots = torch.vstack((forward_orientations, command_orientations, waypoint_orientations))
# render the markers
all_envs = torch.arange(self.num_envs, device=self.device)
indices = torch.hstack((torch.zeros_like(all_envs), torch.ones_like(all_envs), torch.full_like(all_envs, 2)))
self.visualization_markers.visualize(locs, rots, marker_indices=indices)
def _pre_physics_step(self, actions: torch.Tensor) -> None:
self.actions = actions.clone()
self._visualize_markers()
def _apply_action(self) -> None:
# apply action scaling
scaled_actions = self.actions * self.action_scale
self.robot.set_joint_velocity_target(scaled_actions, joint_ids=self.dof_idx)
def _get_observations(self) -> dict:
# robot position and orientation
robot_pos = self.robot.data.root_pos_w
robot_quat = self.robot.data.root_quat_w
# vector to target in world frame
self.vec_to_target_world = self.waypoint_locations - robot_pos
self.dist_to_target = torch.norm(self.vec_to_target_world[:, :2], p=2, dim=-1)
# vector to target in robot's local frame
vec_to_target_local = math_utils.quat_apply_inverse(robot_quat, self.vec_to_target_world)
# robot velocities
robot_lin_vel_local = math_utils.quat_apply_inverse(robot_quat, self.robot.data.root_lin_vel_w)
robot_ang_vel_local = math_utils.quat_apply_inverse(robot_quat, self.robot.data.root_ang_vel_w)
# lidar data - 거리 값만 사용
#lidar_scan = self.lidar.data.distance.squeeze(1) # (num_envs, num_rays)
# observations
obs = torch.cat(
(
vec_to_target_local,
robot_lin_vel_local,
robot_ang_vel_local,
#lidar_scan,
),
dim=-1,
)
observations = {"policy": obs}
return observations
def _get_rewards(self) -> torch.Tensor:
# -- distance-based reward (potential-based)
progress_reward = 2.0 * (self.potentials - self.dist_to_target)
self.potentials = self.dist_to_target.clone()
# -- velocity reward (towards target)
# get the unit vector to the target
vec_to_target_unit = self.vec_to_target_world / (torch.norm(self.vec_to_target_world, dim=1, keepdim=True) + 1e-6)
# project the robot's velocity onto the vector to the target
velocity_to_target = torch.sum(self.robot.data.root_lin_vel_w * vec_to_target_unit, dim=1)
# reward for moving towards the target
velocity_reward = 1.0 * torch.clamp(velocity_to_target, min=0)
# -- orientation reward (facing target)
# get the robot's forward direction vector
forward_vec = torch.tensor([1.0, 0.0, 0.0], device=self.device).repeat(self.num_envs, 1)
robot_fwd_vec = math_utils.quat_apply(self.robot.data.root_quat_w, forward_vec)
# compute the cosine similarity to reward facing the target
heading_reward = 0.1 * torch.sum(robot_fwd_vec * vec_to_target_unit, dim=1)
# -- success reward
success_reward = torch.zeros_like(progress_reward)
success_reward[self.dist_to_target < 0.5] = 50.0
# reward for reaching the goal
# -- action penalty
action_penalty = -0.001 * torch.sum(torch.square(self.actions), dim=-1)
# -- time penalty (to encourage speed)
time_penalty = -0.01
# -- total reward
total_reward = (
progress_reward
+ velocity_reward
+ heading_reward
+ success_reward
+ action_penalty
+ time_penalty
)
return total_reward.unsqueeze(1)
def _get_dones(self) -> tuple[torch.Tensor, torch.Tensor]:
time_out = self.episode_length_buf >= self.max_episode_length - 1
# reset if goal is reached
reset_goal = self.dist_to_target < 0.5
return reset_goal, time_out
def _reset_idx(self, env_ids: Sequence[int] | None):
if env_ids is None:
env_ids = self.robot._ALL_INDICES
super()._reset_idx(env_ids)
# -- Waypoint goal
# sample new goal locations
radius_minimum = 0.5
radius = 4.5
rand_dist = torch.rand(len(env_ids), device=self.device) * radius + radius_minimum
rand_angle = torch.rand(len(env_ids), device=self.device) * 2 * math.pi
# set the new goals
self.waypoint_locations[env_ids, 0] = self.scene.env_origins[env_ids, 0] + rand_dist * torch.cos(rand_angle)
self.waypoint_locations[env_ids, 1] = self.scene.env_origins[env_ids, 1] + rand_dist * torch.sin(rand_angle)
self.waypoint_locations[env_ids, 2] = 0.3
# fixed height
# set the root state for the reset envs
default_root_state = self.robot.data.default_root_state[env_ids]
default_root_state[:, :3] += self.scene.env_origins[env_ids]
self.robot.write_root_state_to_sim(default_root_state, env_ids)
# reset potentials
robot_pos = self.robot.data.root_pos_w[env_ids]
vec_to_target_world = self.waypoint_locations[env_ids] - robot_pos
self.dist_to_target[env_ids] = torch.norm(vec_to_target_world[:, :2], p=2, dim=-1)
self.potentials[env_ids] = self.dist_to_target[env_ids].clone()
# self.lidar.reset(env_ids)
self._visualize_markers()
수정된 env_cfg.py 코드
# Copyright (c) 2022-2025, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
from MyFirstCar.robots.jetbot import JETBOT_CONFIG
from isaaclab.assets import ArticulationCfg
from isaaclab.envs import DirectRLEnvCfg
from isaaclab.scene import InteractiveSceneCfg
from isaaclab.sim import SimulationCfg
from isaaclab.utils import configclass
@configclass
class MyfirstcarEnvCfg(DirectRLEnvCfg):
# env
decimation = 2
episode_length_s = 10.0
# - spaces definition
action_space = 2
observation_space = 3 #Lidar scan data
state_space = 0
# simulation
sim: SimulationCfg = SimulationCfg(dt=1 / 120, render_interval=decimation)
# robot(s)
robot_cfg: ArticulationCfg = JETBOT_CONFIG.replace(prim_path="/World/envs/env_.*/Robot",init_state=ArticulationCfg.InitialStateCfg(
pos=(0.0, 0.0, 0.8)))
# scene
scene: InteractiveSceneCfg = InteractiveSceneCfg(num_envs=16, env_spacing=20, replicate_physics=True)
dof_names = ["wheel_joint_left", "wheel_joint_right"]
action_scale = (0.5, 0.5)
